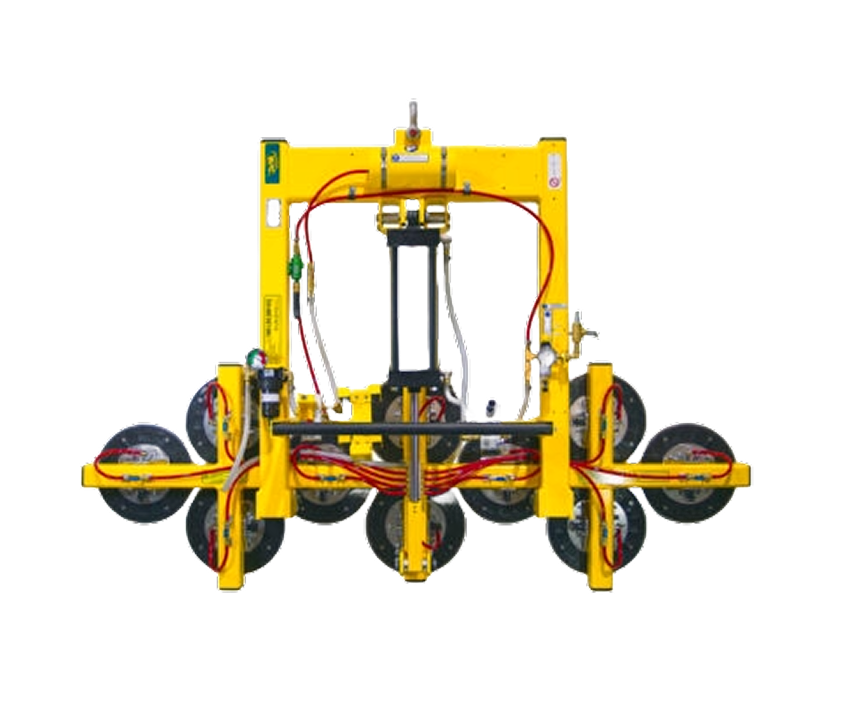

PT10
PT10
Model Number
PT1010TAIR
Maximum Load Capacity
1,500 lbs [680 kg]
Standard Pad Spread
Minimum: 11-3/4" x 32-3/4" [30 cm x 83 cm], Maximum: 23-3/4" x 74-3/4" [60 cm x 190 cm]
Number/Size of Pads
10/10" [25 cm] diameter vacuum pads with replaceable sealing rings
Load Movement
Power tilt, 90° between upright and flat
Lifter Weight (for Air-Power System):
340 lbs [155 kg]
Standard Operating Power
Compressed air, 11 SCFM [311 liters/min] @ 80 psi [552 kPa]
Attach/Release Times
10 seconds/3 seconds (approximately)
Time for 90° Tilt
8 seconds (approximately)
