great.lakes.lifting

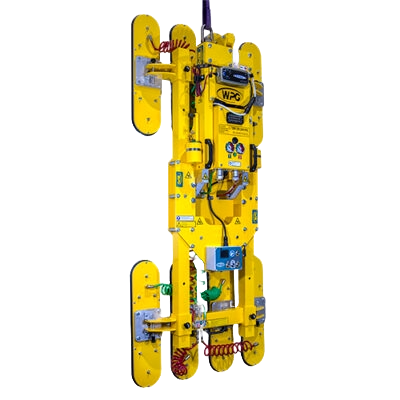

MTEX
MTEX
Model Number
MTEX8625DC3
Maximum Load Capacity
1200 lbs [545 kg]
Standard Pad Spread
Vertical: 76" x 34" [193 cm x 86 cm] Horizontal: 135-3/4" x 34" [345 cm x 86 cm]
Number/Size of Vacuum Pads
8 with nominal dimensions of
6" x 25" [15 cm x 64 cm] (Model VPFS625)
Lifter Weight
315 lbs [143 kg]
Load Movement
Manual, 90°, with automatic latching in flat
Standard Operating Power
12 volts DC, 5.5 amps
Profile Thickness
13" [33 cm] (does not include load)
