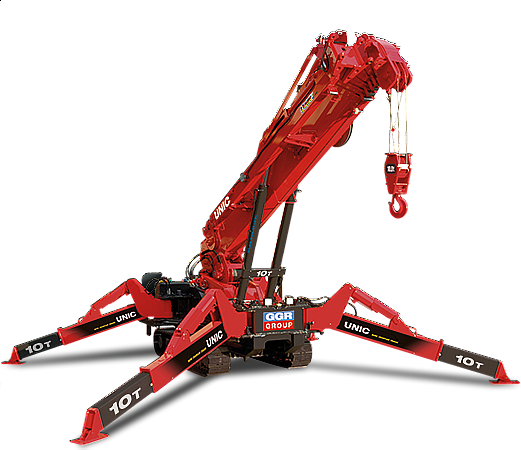

Spydercrane URW1006 Mini Crawler Crane (Only Rerentals Available)
*We do not have this machine in our current fleet and only available for rerental.
When your project requires substantial lifting capacity in a restricted-access environment, the Spydercrane URW1006 is a proven solution. It has a lifting capacity of up to 22,000 lbs and a compact footprint, perfect for tight spaces.
At Great Lakes Lifting Solutions, we help contractors complete heavy industrial, commercial, and construction lifts while maintaining access to challenging job sites.
Unmatched Power & Pick-and-Carry Versatility
Spydercrane URW1006 Technical Specifications
Spydercrane URW1006 Technical Specifications
| Specification | Details |
|---|---|
Lifting Capacity & Reach |
|
| Maximum Lifting Capacity | 22,000 lbs @ 10 ft |
| Pick & Carry Capacity | 3,300 lbs |
| Boom Length | 76 ft |
| Maximum Tip Height | 105 ft |
Dimensions & Footprint |
|
| Travel Dimensions (W x L) | 67″ x 198″ |
| Approximate Footprint (Max) | ~23′ x 22′ |
| Approximate FootPrint (Min) | ~20′ x 20′ |
| Machine Weight | 30,865 lbs |
Power Configurations |
|
| Standard Power Source | Diesel |
| Optional Power Configurations | Electric/Diesel Hybrid or Battery/Diesel Hybrid |
Advanced Safety & Remote Operation
The URW1006 is equipped with advanced safety features that help crews work confidently in demanding environments. Its high-resolution color LCD safe load indicator provides real-time operating data, while the radio remote control improves visibility and operator feedback. Adjustable outriggers with integrated safety interlocks enhance stability on uneven terrain.
