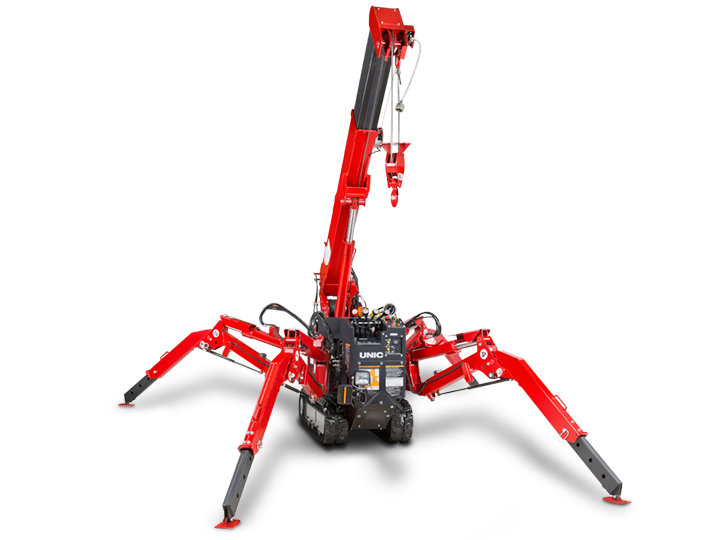

UNIC Spydercrane URW094 Mini Crawler Crane: Rentals & Sales
Access challenges don't have to limit your lifting capabilities. The URW094 is a battery powered ultra-compact mini crawler crane that can fit through standard doorways and many freight elevators, making it an excellent choice for interior construction, facility upgrades, and projects where larger equipment simply cannot operate.
Ultra-Compact & Zero Emissions: The URW094 Advantage
Spydercrane URW094 Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity & Reach | |
| Maximum Lifting Capacity | 1,990 lbs |
| Maximum Tip Height | 22 ft |
| Maximum Working Radius | 18 ft |
| Boom Configuration | 4-Section Hydraulically Telescoping Boom |
| Wire Rope Length | 75 ft |
| Hoist Speed | 36 ft/min |
| Dimensions & Weight | |
| Travel Width | 1.9 ft (23 in) |
| Travel Length | 6.1 ft |
| Travel Height | 4.2 ft |
| Machine Weight | 2,400 lbs |
| Minimum Outrigger Footprint | 7 ft x 6 ft |
| Maximum Outrigger Footprint | 10.5 ft x 10.5 ft |
| Safety Devices & Optional Accessories | |
| Onboard Monitoring System | Self-Diagnostic Computer |
| Overwind Protection | Automatic Stop Function |
| Safety Interlocks | Integrated Interlock Devices |
| Load Monitoring | Rated Capacity Limiter |
| Remote Operation | U-WAVE Wireless Radio Remote Control |
| Outrigger Configuration | Variable Geometry Outriggers |
| Power System | Battery Powered with 110V Charging |
| Optional Equipment | Searcher Hook, Fly Jib, and Additional Accessories Available |

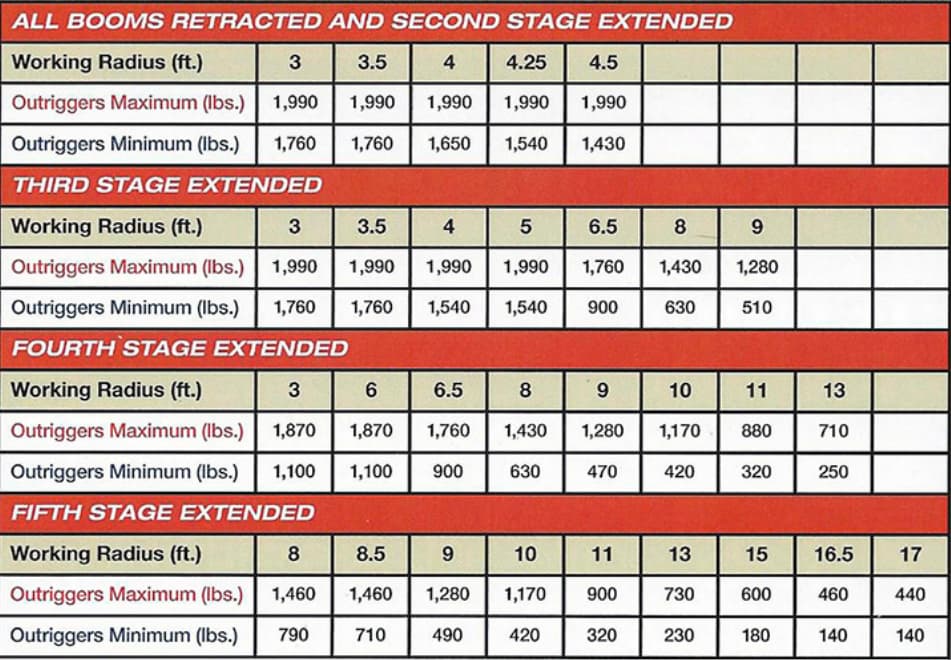

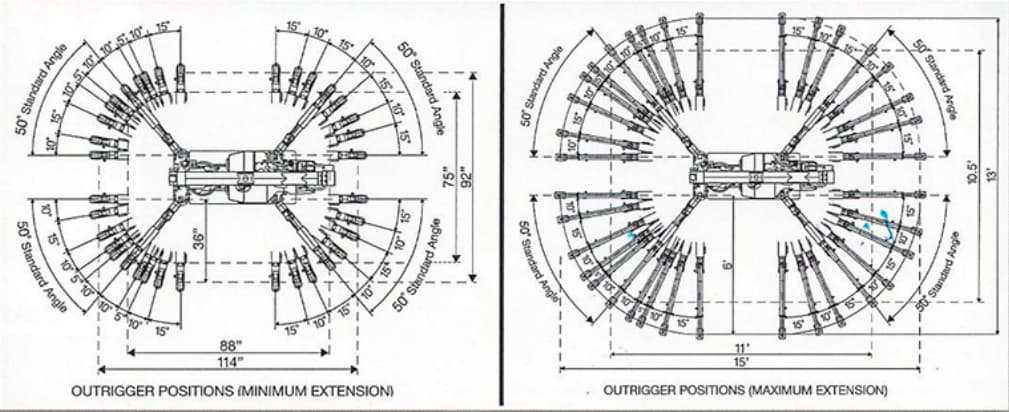

URW094 Load Chart & Outrigger Positions
Every lift presents different requirements. The URW094's capacity varies with outrigger configuration, boom length, and working angle, giving crews the flexibility to adapt to challenging jobsite conditions while maintaining safe and efficient lifting performance.
The charts on the left show how the URW094's rated capacities are affected, helping project teams plan lifts with greater confidence and accuracy.
Download the Spydercrane URW094 Spec Sheet
Need detailed information before making a decision? Download the official URW094 spec sheet to review dimensions, lifting data, safety features, and operational details that can help support project planning and equipment selection.
